Model |
RS520A-E11-RS24U
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Single AMD EPYC - RS520A-E11-RS24U - 24x NVMe, 2x GPU |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
SP3 LGA |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR4 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
4096GB (16 x 256GB) |
| Expansion Slots |
|
2
x
PCI-e (4.0) x16
|
1
x
OCP Mezzanine (PCI-e 4.0 x16)
|
|
1
x
PCI-e (4.0) x8 (in x16 slot)
|
2
x
M.2 Key Socket
|
|
| IO Ports |
2x USB 3.2 Rear, 2x USB 3.2 Front, 1x VGA Rear, 2x LAN, 1x LAN (IPMI) |
On-board HD
controllers |
| 24 port NVMe (PCI-e 4.0)(Via SlimSAS) |
| 8 port SATA (6Gb/s)(AMD SoC) |
|
| On-board RAID |
| 24 port NVMe (PCI-e 4.0)(RAID N/A - JBOD Mode only)(Via SlimSAS) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (ASMB9-iKVM) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 2 x | Intel i350-AM2 1 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2600/64(1Head)(64MB RAM) |
| General Info |
Supports one AMD EPYC 7003 series processors. System featuring high speed DDR4 3200MHz RAM (Registered ECC and LR DIMM). Arranged as high performance Eight channel, populated in eights per processor. Also supported quad channel mode, populated in fours. System with integrated 2x Intel i350-AM2 Gigabit LAN ports. |
| Name |

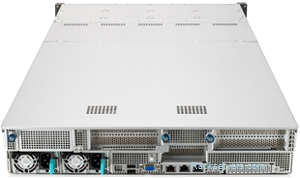

2U Asus RS520A-E11-RS24U - 24x 2.5" NVMe bays (8 bays SATA/SAS ready) |
| Height |
2U, 88mm |
|
Depth |
840mm |
| Width |
449mm |
|
|
|
| Bays |
| 24 x | 2.5" NVMe (+ Hybrid SATA/SAS) Hot Swap |
|
|
Front USB Ports |
2 |
| Drive Support |
24 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 3.0)/NVMe (PCI-e 4.0) |
|
Expansion Slots |
4 |
| Description |
2U Asus RS520A-E11-RS24U, 24x 2.5" Hot Swap NVMe Bays (8 bays SATA/SAS ready). 2x PCI-e (4.0) x16 Double Width GPU slots, 1x PCI-e (4.0) x8 slot, 1x OCP Mezzanine. 1+1 Redundant 1600W 80plus Platinum PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
64GB RAM (Total), 64GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Chassis Colour |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Server Manager |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
