Model |
RS700-E11-RS4U
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Dual 5th/4th Gen Xeon Scalable ASUS Z13PP-D32 (RS700-E11-RS4U) |
|
Chipset |
Intel C741 |
| CPU Socket Type |
FCLGA4677 |
|
Maximum CPU |
2 |
| RAM Slot Type |
DDR5 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
8192GB (32 x 256GB) |
| Expansion Slots |
|
2
x
PCI-e (5.0) x16
|
2
x
M.2 Key Socket
|
|
1
x
PCI-e (5.0) x16
(LP)
|
1
x
Intel VROC Socket
|
|
1
x
PCI-e (4.0) x8 (Internal)
(LP)
| |
|
| IO Ports |
2x USB 3.2 Rear, 2x USB 3.2 Front, 1x VGA Front, 1x VGA Rear, 3x RJ45 LAN Ports (1 port for IPMI). |
On-board HD
controllers |
| 4 port NVMe (PCI-e 5.0)(Via 2x MCIO) |
| 4 port SATA (6Gb/s)(Intel C741) |
|
| On-board RAID |
| 4 port NVMe (PCI-e 5.0)(RAID via Intel VROC) |
| 4 port SATA (6Gb/s)(RAID 0,1,5,10) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (ASMB11 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 1 x | Intel X710-AT2 (RJ45) 2 Port 10GbE |
|
On-board
Graphics |
ASpeed AST2600/64(1Head)(64MB RAM) |
| General Info |
Supports the latest 5th/4th Gen Xeon Scalable Bronze/Silver/Gold/Platinum series CPUs, up to 16 GT/s UPI. Featuring high speed DDR5 4800MHz RAM. Arranged as high performance eight channel mode, populated in eights. Also supported quad channel mode, populated in fours. Supported full PCI-e (5.0) specification. |
| Name |

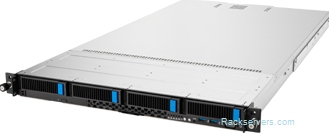

1U ASUS RS700-E11-RS4U, 4x 3.5" NVMe/SATA/SAS |
| Height |
1U, 44mm |
|
Depth |
843mm |
| Width |
440mm |
|
|
|
| Bays |
| 4 x | 3.5"/2.5" NVMe (+SATA/SAS) Hot Swap |
|
|
Front USB Ports |
2 |
| Drive Support |
4 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 4.0)/NVMe (PCI-e 5.0) |
|
Expansion Slots |
2 |
| Description |
1U ASUS RS700-E11-RS4U, 4x 3.5" Hot Swap NVMe/SATA/SAS Bays. 3x PCI-e (5.0) Slots (2x FH, 1x LP), 1+1 Redundant 1600W 80plus Titanium PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Intel VROC RAID |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
