Model |
R263-SG0 Rev AAL1
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Single 5th/4th Gen Xeon Scalable Gigabyte 9MSG3GU0UR-000 (G263-SGO Rev AAL1) |
|
Chipset |
Intel C741 |
| CPU Socket Type |
FCLGA4677 |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR5 (Use in pairs, quads, eights, Linked to processor) |
|
Maximum RAM |
4096GB (16 x 256GB) |
| Expansion Slots |
|
4
x
PCI-e (5.0) x16
|
1
x
M.2 Key Socket
|
|
1
x
OCP Mezzanine (PCI-e 5.0 x16)
| |
|
| IO Ports |
Front I/O: 2x USB 3.2
Rear I/O: 2x USB 3.2, 1x Mini-DP, 1x IPMI LAN |
On-board HD
controllers |
| 8 port SATA (6Gb/s)(Intel C741) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)(RAID 0,1,5,10)(Intel C741) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (AST2600) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 1 x | None Integrated 0 Port N/A |
|
On-board
Graphics |
ASpeed AST2600/64(1Head)(64MB RAM) |
| General Info |
Double width GPU optimised motherboard. Supports one 5th & 4th Gen Xeon Scalable Bronze/Silver/Gold/Platinum series CPUs, up to 16 GT/s UPI. Featuring high speed DDR5 4800MHz RAM. Arranged as high performance eight channel mode, populated in eights. Also supported quad channel mode, populated in fours. Supported full PCI-e (5.0) specification. |
| Name |

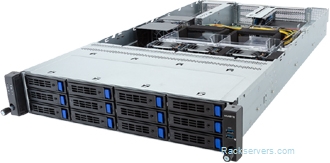

2U Gigabyte R263-SG0 Rev AAL1 - 4x GPU Optimised, 2x 2700W |
| Height |
2U, 88mm |
|
Depth |
815mm |
| Width |
438mm |
|
|
|
| Bays |
|
|
Front USB Ports |
2 |
| Drive Support |
8 port SATA (6Gb/s)/SAS3 (12Gb/s) |
|
Expansion Slots |
5 |
| Description |
2U Gigabyte R263-SG0 Rev AAL1 GPU Solution. Supports up to 4x Double Width GPU adapters, with 12x Hot Swap 3.5" SATA/SAS4 bays. Chassis with 2x 2700W Titanium (96%) Redundant PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
RAID Option |
|
|
|
|
RAID Option 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
System Option |
|
|
|
|
System Option 2 |
|
|
|
|
System Option 3 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
TPM Module |
|
|
|
|
Maintenance |
|
|
|
|
|
|
