Model |
R163-Z32-AAH2
|
System Ref |
|
|
|
|
|
System FeaturesChassis Features
| Motherboard |
Single AMD EPYC 9000 - Gigabyte MZ33-DC0 - 4x NVMe |
|
Chipset |
System-On-Chip |
| CPU Socket Type |
SP5 LGA |
|
Maximum CPU |
1 |
| RAM Slot Type |
DDR5 (Use in pairs, quads, sixes, eights, twelves, Linked to processor) |
|
Maximum RAM |
3072GB (12 x 256GB) |
| Expansion Slots |
|
2
x
PCI-e (5.0) x16
|
2
x
OCP Mezzanine (PCI-e 5.0 x16)
|
|
1
x
M.2 Key Socket
| |
|
| IO Ports |
Front Ports: 1x USB 3.2, Rear Ports: 2x USB 3.2, 1x VGA, 1x IPMI LAN, Internal: 1x TPM Header |
On-board HD
controllers |
| 8 port SATA (6Gb/s)(AMD SoC) |
| 4 port NVMe (PCI-e 4.0)(Via SlimSAS) |
|
| On-board RAID |
| 8 port SATA (6Gb/s)(RAID N/A - JBOD Mode only)(AMD SoC) |
| 4 port NVMe (PCI-e 4.0)(RAID N/A - JBOD Mode only) |
|
|
On-board Features |
Integrated IPMI 2.0 Remote Management (AST2600 BMC) with Dedicated LAN. Supports Virtual Media over LAN and KVM over LAN. |
| On-board LAN |
| 1 x | Intel i210AT 2 Port Gigabit |
|
On-board
Graphics |
ASpeed AST2600/64(1Head)(64MB RAM) |
| General Info |
Supporting single 4th Gen AMD EPYC 9000 Series CPUs, up to 400W TDP. Featuring high speed DDR5 4800MHz RAM. Arranged as high performance twelve channel mode. Also supported eight & quad channel modes. |
| Name |

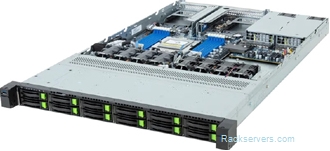

1U Gigabyte R163-Z32 - 12x 2.5" H'Swap bays (4 bays NVMe ready) |
| Height |
1U, 44mm |
|
Depth |
710mm |
| Width |
438mm |
|
|
|
| Bays |
| 12 x | 2.5" Hot Swap (4 bays NVMe ready) |
|
|
Front USB Ports |
2 |
| Drive Support |
12 port SATA (6Gb/s)/SAS3 (12Gb/s) /NVMe (PCI-e 4.0) |
|
Expansion Slots |
4 |
| Description |
1U Gigabyte R163-Z32, 12x 2.5" Hot Swap Bays (4 bays NVMe ready). 2x PCI-e (5.0) x16 slots, 2x OCP Mezzanine (PCI-e (5.0) x16 slots. 1+1 Redundant 1300W 80plus Platinum PSU. |
|
|
|
Processor |
|
|
|
|
RAM |
|
|
|
| |
32GB RAM (Total), 32GB for CPU1
|
|
|
|
RAID on board |
|
|
|
|
RAID Controller |
|
|
|
|
RAID Controller 2 |
|
|
|
|
H'Swap HD/SSD |
|
|
|
|
H'Swap HD/SSD2 |
|
|
|
|
H'Swap HD/SSD3 |
|
|
|
|
PCI-e SSD |
|
|
|
|
PCI-e SSD 2 |
|
|
|
|
M.2 SSD |
|
|
|
|
M.2 SSD 2 |
|
|
|
|
Graphics on board |
|
|
|
|
Graphics/GPU |
|
|
|
|
Graphics/GPU 2 |
|
|
|
|
LAN on board |
|
|
|
|
LAN Controller |
|
|
|
|
LAN Controller 2 |
|
|
|
|
PSU |
|
|
|
|
Mouse |
|
|
|
|
Monitor |
|
|
|
|
Keyboard |
|
|
|
|
Rail Kit |
|
|
|
|
Extra Peripheral |
|
|
|
|
Operating System |
|
|
|
|
Software |
|
|
|
|
Software 2 |
|
|
|
|
Software 3 |
|
|
|
|
Maintenance |
|
|
|
|
|
|
